Overview

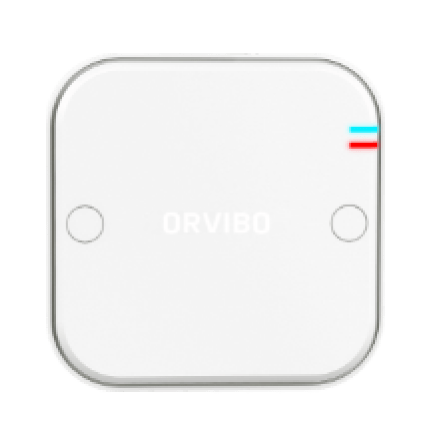

The Orvibo Zigbee RGB Relay is a compact and intelligent lighting controller designed to manage RGB strip and panel lights via the Zigbee protocol. Integrated with the HomeMate App, it offers seamless wireless control, enabling users to change colors, adjust brightness, and create custom scenes from their smartphone. With mesh networking capabilities and support for millions of colors, it’s ideal for enhancing modern smart lighting environments.
Key Features
- Compatible with most V+ signal RGB strip and panel lights
- Supports 16 million colors and adjustable color temperature (2700K–6500K)
- Dual voltage support: DC12V and DC24V
- Scene creation for customized lighting environments
- Power-off memory – retains settings after power loss
- Mesh networking for reliable long-distance Zigbee communication
- Plug-and-play Zigbee auto networking, no pairing code needed
Specifications
- Model No.: RL804CZB
- Size: 70 × 70 × 23 mm (L×W×H)
- Power Supply: DC 12V & 24V
- Max Load Current: 20A
- Working Frequency: 2.4GHz
- Wireless Transmit Power: 20dBm
- Static Power Consumption: ＜0.1W
- Wireless Receiving Sensitivity: ≥ -90dBm
- Protocol: ZigBee HA
- Networking Mode: ZigBee automatic networking
- Encryption: AES128
- Communication Distance: Unlimited via mesh network
- Operating Temperature: -20°C ~ 60°C
- Operating Humidity: ≤80%
Application Scenarios
- Home Ambient Lighting: Control RGB strip lighting in living rooms, bedrooms, or under-cabinet areas for customized moods.
- Commercial Installations: Ideal for RGB panel lighting in retail spaces, lobbies, and displays.
- Entertainment Zones: Build immersive color effects for home theaters and gaming setups.
- Event Decoration: Easily adjust lighting themes for parties and special events via smartphone control.
Why Choose the Orvibo Zigbee RGB Relay?
- Versatile Compatibility: Works with most V+ signal-based RGB strip and panel lights
- App-Based Control: Full lighting control via the HomeMate App
- Superior Customization: Millions of color options and adjustable color temperature
- Reliable Mesh Network: Ensures stable connectivity throughout the smart home
- Plug-and-Play Installation: No pairing codes required for network access
