Overview

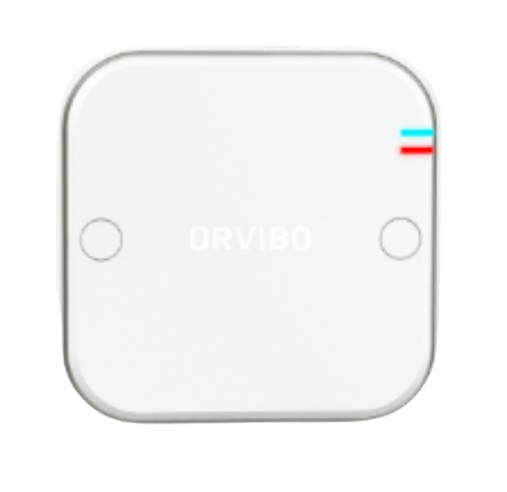

The Orvibo ZigBee Multi-Functional Relay is a versatile control device designed to automate a wide range of home applications, including railway curtains, electric windows, garage doors, and garden irrigation systems. It connects seamlessly with a ZigBee hub and communicates through ZigBee protocol, allowing users to control connected devices remotely via the Orvibo HomeMate App on their smartphone.
Key Features
- Three Working Modes: High voltage mode, low voltage mode, and power relay mode to support diverse automation needs.
- ZigBee Automatic Networking: Hassle-free setup with no pairing codes required for quick and easy deployment.
- Scene Support: Create smart scenes to trigger multiple devices simultaneously for complete automation routines.
- Power-Off Memory: Retains previous settings and stays connected to the ZigBee network after power outages.
- Mesh Networking: Extends communication range by routing data through intermediate ZigBee devices, ensuring a more stable and reliable network.
Specifications
- Model: CM10ZW
- Size: 70 × 70 × 23 mm (L × W × H)
- Power Supply: 100–240V~, 50–60Hz
- Maximum Current: 1A (per loop)
- Working Frequency: 2.4GHz
- Wireless Transmitting Power: 20dBm
- Static Power Consumption: <1W
- Wireless Receiving Sensitivity: <-90dBm
- Protocol: ZigBee HA
- Networking Mode: ZigBee automatic networking
- Encryption: AES128
- Working Distance: Up to 100 meters in open space
- Working Temperature: -20°C to 60°C
- Working Humidity: ≤80%
Application Scenarios
- Railway Curtains: Automate curtain control to adjust lighting and privacy based on time or occupancy.
- Electric Windows: Remotely open or close windows for ventilation or weather response.
- Garage Doors: Add remote or scene-based control to open or close garage doors securely.
- Garden Irrigation: Automate watering schedules to maintain gardens efficiently without manual effort.
Packing List
- Multi-functional Relay × 1
- Screw × 2
- Screw Cap × 2
- Wire × 2
- User Guide × 1
Why Choose Orvibo ZigBee Multi-Functional Relay
Whether you’re automating your curtains, windows, or garden irrigation system, the Orvibo ZigBee Multi-Functional Relay offers powerful and reliable control through a stable ZigBee network. With support for smart scenes, mesh networking, and remote access via the HomeMate App, this compact relay adds flexibility and convenience to any smart home setup.
