EAE Rosa Socket Frames | Glass & Metal Socket Frame Series

Overview

The EAE Rosa Socket Frame Series blends aesthetic sophistication with durable design, offering a choice between anodized brushed metal and tempered glass surfaces. Designed to support up to 5-gang configurations, these frames are compatible with a wide range of core modules including Ethernet, telephone, antenna, and power sockets. The Rosa series is ideal for both residential and commercial spaces seeking modern elegance and flexibility.


Key Features

  • Available in anodized brushed metal or tempered glass finishes
  • Minimalist design for modern interiors
  • Supports configurations up to 5-gang
  • Compatible with 52 x 52 mm Schneider Asfora and Asfora Plus Series cores
  • Flush mounted installation; horizontal or vertical orientation
  • Available colors for metal: Bronze, Gold, Anthracite, Natural
  • Available colors for glass: Black, White

Specifications

  • Type of Protection: IP 20 (EN 60 529)
  • Safety Class: II (EN 61 140)
  • Material Type: Anodized Aluminium or Tempered Glass
  • Core Dimension: 52 x 52 mm
  • Installation: Flush Mounted
  • Mounting Direction: Horizontal or Vertical
  • Dimensions:
    • 1-gang: 85 x 85 mm
    • 2-gang: 156 x 85 mm
    • 3-gang: 227 x 85 mm
    • 4-gang: 298 x 85 mm
    • 5-gang: 369 x 85 mm
  • Weight (Metal):
    • 1-gang: 0.055 kg
    • 2-gang: 0.095 kg
    • 3-gang: 0.136 kg
    • 4-gang: 0.178 kg
    • 5-gang: 0.219 kg
  • Weight (Glass):
    • 1-gang: 0.052 kg
    • 2-gang: 0.089 kg
    • 3-gang: 0.128 kg
    • 4-gang: 0.176 kg
    • 5-gang: 0.206 kg

Application Scenarios

  • Luxury residential apartments and villas
  • Office buildings and corporate interiors
  • Hospitality environments such as hotels and resorts
  • Retail and showroom applications

Why Choose the EAE Rosa Socket Frames?

The EAE Rosa Socket Frame Series offers a refined solution for integrating electrical components seamlessly into stylish environments. With support for up to 5-gang modules, customizable orientations, and compatibility with Schneider Asfora cores, the Rosa frames provide both elegance and versatility. Their brushed metal and glass designs elevate interior aesthetics, making them a premium choice for contemporary installations.

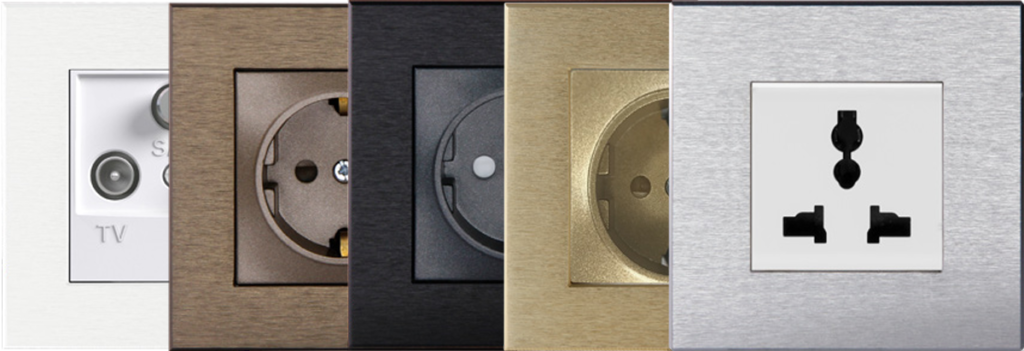

EAE ROSA socket frames in brushed metal and glass finishes with up to 5-gang options
