Overview

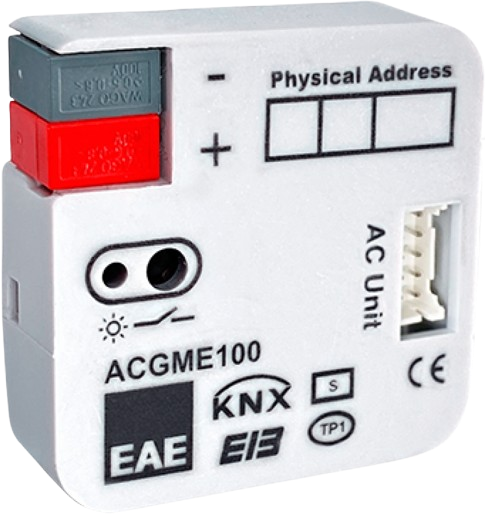

The EAE Mitsubishi AC Gateway enables seamless integration of Mitsubishi indoor air conditioning units with KNX building automation systems. Designed to optimize climate control and energy savings, the gateway allows users to manage air conditioners in conjunction with other smart home or building functions, offering both comfort and efficiency.
Key Features
- Customizable AC functions for optimum climate control
- Remote lock functionality for improved security and control
- Supports operating hours monitoring and alarm functions
- Scene control for simplified environment management
- Energy-saving features including window/door sensor support and auto-off timer
- Logic function for intelligent automation
- Preserves last state after KNX bus voltage return
Specifications
- Type of Protection: IP20 (EN 60529)
- Safety Class: II (EN 61140)
- Power Supply: 22V…30V DC, via KNX bus
- Current Consumption: ≤10mA
- AC Communication Port Cable Length: ≤3 meters
- Operating Elements: LED (red) and button for physical address
- Operating Temperature: -5°C to +45°C
- Storage Temperature: -25°C to +55°C
- Humidity: Max 90% (non-condensing)
- Dimensions: 42.5 x 42.5 x 12.8 mm
- Weight: 0.06 kg
- Material: Polycarbonate, grey color
- Compliance: CE, EMC guideline, and low voltage directive
Application Scenarios
Ideal for hotels, office buildings, commercial centers, and smart homes, the EAE Mitsubishi AC Gateway provides precise control over indoor climate systems. It supports integration with sensors and KNX logic to reduce energy usage while maintaining comfort in any environment.
Why Choose the EAE Mitsubishi AC Gateway?
Choosing the EAE Mitsubishi AC Gateway means upgrading your Mitsubishi HVAC system to a smart automation-ready solution. Its energy-efficient features, flexible configuration, and KNX compatibility make it a powerful addition to any intelligent building setup. Benefit from simplified climate control, enhanced security, and long-term energy savings.
