Overview

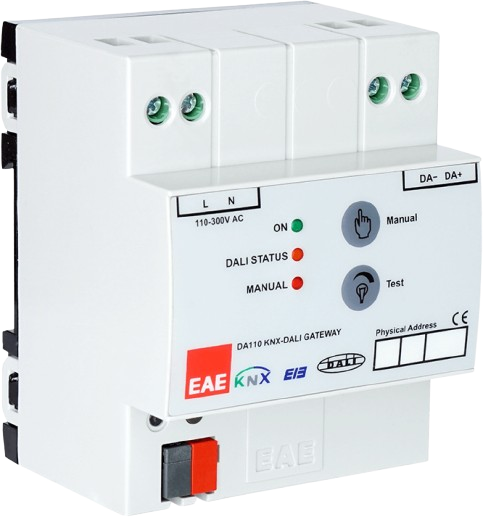

The EAE KNX-DALI Gateway (DA110) is a versatile interface device that seamlessly connects KNX and DALI systems according to IEC 62386 standards. With an integrated DALI power supply, it enables the individual control of up to 64 DALI devices such as electronic ballasts, transformers, and LED drivers. The DA110 is ideal for modern lighting automation projects that demand flexibility, reliability, and full scene control.
Key Features
- Integrated DALI power supply for up to 64 DALI devices
- Control devices individually and configure up to 16 lighting scenes
- Addressing and testing via EAE DALI Tool (Windows PC software)
- Fault monitoring for each DALI device through KNX communication
- Manual control with test button and LED status indicators
- KNX bus powered with low energy consumption
- 35 mm DIN rail mountable (4 module width)
Specifications
- KNX Supply Voltage: 21–30V DC SELV
- KNX Bus Consumption: <10 mA
- Main Supply Voltage: 85–300V AC (50–60 Hz)
- Power Consumption: Max. 8W
- DALI Output: Max. 64 devices
- DALI Supply Voltage: 16V DC typical
- DALI Current: Max. 128 mA
- Wiring: Screw terminals (solid: 0.05–2.5mm² / stranded: 0.03–1.5mm²)
- Protection Type: IP20 (EN 60529)
- Safety Class: II (EN 61140)
- Installation: DIN rail (EN 60715)
- Dimensions: 70 x 69 x 91 mm (4 modules)
- Operating Temperature: -5°C to +45°C
- Storage Temperature: -25°C to +55°C
- Max. Humidity: 95% (no condensation)
- Material: Plastic, polycarbonate, grey
- Compliance: CE, EMC guideline and low voltage directive
