Overview

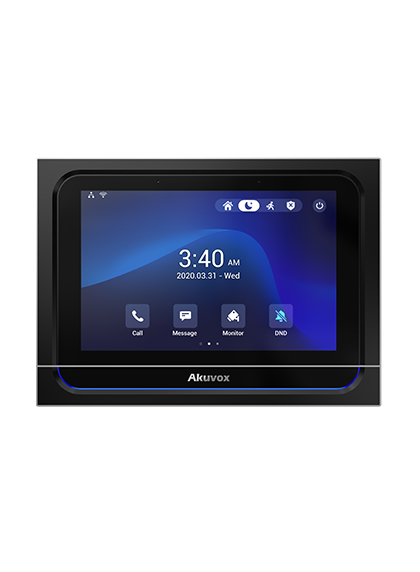

The Akuvox X933 Smart Indoor Monitor is the debut model in the X Series, combining Italian-inspired design with a compact form factor and intelligent features. Equipped with Android 9.0, a 7-inch IPS touch display, and SIP 2.0 compatibility, this unit is perfect for audio and video communication in smart apartments and modern villas.
Whether you’re integrating it with a SIP PBX or using it as part of a home automation system, the X933 delivers intuitive usability and crisp visual/audio quality—all from a sleek, wall-mounted interface.
Key Features
-
7” capacitive IPS LCD touchscreen with 1280 x 800 HD resolution
-
Powered by Android 9.0 for seamless app control and updates
-
SIP 2.0 protocol support for clear video communication
-
Dual microphone and speaker system with echo cancellation
-
Wall-mountable and supports US & EU electrical wall boxes
-
Compatible with PoE (802.3af) or 12V DC power supply
-
Tamper-resistant design and privacy-focused voice assistant
Technical Specifications
Display
-
Size: 7-inch IPS LCD
-
Resolution: 1280×800 HD
-
Touch Type: Projected capacitive
-
Aspect Ratio: 16:10
-
Brightness: 350 cd/㎡
-
Contrast Ratio: 900:1
-
Viewing Angle: 178° total (89° in all directions)
Audio & Communication
-
Microphones: Dual (-26 dB sensitivity)
-
Speakers: Dual 3W (4Ω)
-
Audio Codecs: G.711a/u, G.729, G.722
-
Echo Cancellation, AGC, VAD, Comfort Noise Generator
-
DTMF Support: In-band, RFC2833, SIP Info
Video & Intercom
-
Streaming Formats: H.263, H.264
-
Supports SIP v1 & v2 (RFC2543 & RFC3261)
-
Two-way video calling with other compatible SIP devices
Networking & Integration
-
Wi-Fi: IEEE 802.11 b/g/n @ 2.4GHz
-
Bluetooth: BLE 4.1
-
Ethernet: 1 x RJ45 (10/100 Mbps)
-
Power Options: PoE (802.3af) or 12V DC
-
Supported Protocols: IPv4, HTTP/S, FTP, RTSP, RTP, TLS, DHCP, SNMP, SRTP, etc.
-
I/O Ports:
-
RS485 port
-
2 Relay outputs
-
8 I/O channels
-
1 Bell input
-
Deployment & Management
-
Remote web portal for configuration & diagnostics
-
Auto-provisioning and firmware upgrade support
-
System logs (including door access logs)
-
Configuration backup and restore options
-
Wall-mount ready (fits US/EU standard wall boxes)
AI Voice Assistant
-
Pickup Distance: Up to 5 meters
-
Accuracy: Up to 95% recognition
-
Language: English
-
Privacy-focused processing with native voice data handling
Build & Installation
-
Material: High-quality plastic front panel
-
Dimensions: 205 x 148 x 27.5 mm
-
Installation: Wall-mounted only
-
Operating Temp: -10°C to +45°C
-
Storage Temp: -20°C to +70°C
-
Humidity Range: 10% to 90% RH
-
Tamper Detection: Supported
Ideal Applications
-
Apartment intercom systems
-
Entry panels in smart homes or villas
-
Multi-room indoor communication setups
-
Integrated SIP networks in buildings
-
Space-conscious automation installations
Why Choose the Akuvox X933?
Compact, sleek, and smart—the Akuvox X933 Smart Indoor Monitor is perfect for homes or buildings needing a reliable and stylish SIP-compatible touchscreen panel with built-in voice assistance.
