Overview

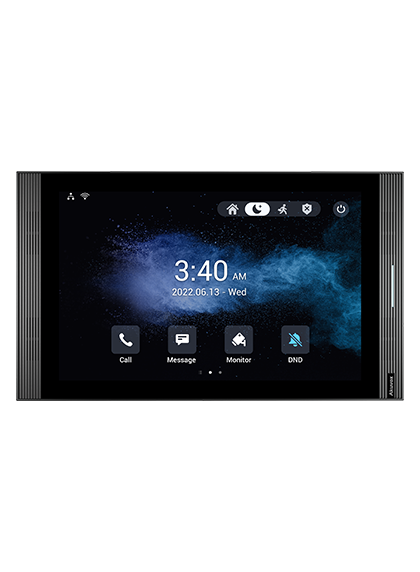

The Akuvox S565 is a 10-inch SIP indoor monitor that delivers high-definition video and audio communication powered by a lightweight Linux OS. Designed for reliability, simplicity, and sleek aesthetics, it fits perfectly into mid-range residential projects, apartment complexes, and smart home environments.
With its dual Ethernet ports, crystal-clear HD screen, and intuitive interface, the S565 offers a seamless user experience for building access and communication control.
Key Features
-
10” capacitive IPS touchscreen with 1280×800 HD resolution
-
Lightweight Linux OS for ultra-fast performance and security
-
Dual microphones and high-clarity speaker with echo cancellation
-
Dual Ethernet ports (10/100 Mbps) for flexible networking
-
Built-in 2.4GHz Wi-Fi connectivity
-
Wall-mounted or desktop installation options
-
Tamper-resistant with robust build and privacy protection features
Technical Specifications
Display
-
Screen: 10-inch IPS LCD (Projected capacitive touchscreen)
-
Resolution: 1280×800
-
Aspect Ratio: 16:10
-
Brightness: 350 cd/㎡
-
Contrast Ratio: 900:1
-
Display Mode: Normally white, Transmissive
-
Viewing Angle: 80° in all directions
Audio & Communication
-
Microphones: Dual
-
Speaker: Single high-clarity unit
-
Echo Cancellation, Comfort Noise Generator
-
Audio Codecs: G.711a, G.711μ, G.729, G.722
-
DTMF Support: RFC2833, SIP Info
Video
-
Streaming Format: H.264
-
Compatible with SIP v1 (RFC2543) and SIP v2 (RFC3261)
Networking & Integration
-
Ethernet: 2x RJ45 (10/100 Mbps adaptive)
-
Wi-Fi: IEEE 802.11 b/g/n @ 2.4GHz
-
RS485 Port: Supported
-
Relay Output: 1
-
Bell Input: 1
-
I/O Channels: 8
-
Power: PoE (802.3af) or 12V DC
-
Supported Protocols: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Management
-
Web-based management portal
-
Auto-Provisioning support
-
Web packet capture tool
-
Firmware upgrades
-
System logs (including door access logs)
-
Configuration backup and restore
Build & Installation
-
Front Panel: Plastic (sleek industrial design)
-
RAM / ROM: 128MB / 256MB
-
Installation: Wall-mounted or desktop-ready
-
Dimensions: 278 x 164 x 22.8 mm
-
Operating Temp: -10°C ~ +45°C
-
Storage Temp: -20°C ~ +70°C
-
Humidity: 10% ~ 90%
-
Tamper Detection: Supported
Ideal Applications
-
Residential apartment complexes
-
Villas and gated communities
-
Smart home automation interfaces
-
Compact access control installations
-
Multi-unit residential developments
Why Choose the Akuvox S565?
With its robust Linux performance, sleek 10” touchscreen, and dual Ethernet ports, the Akuvox S565 delivers essential SIP-based indoor monitoring in a refined and cost-efficient format. It’s a perfect fit for developers and integrators seeking stable, stylish, and scalable intercom solutions.
