Overview

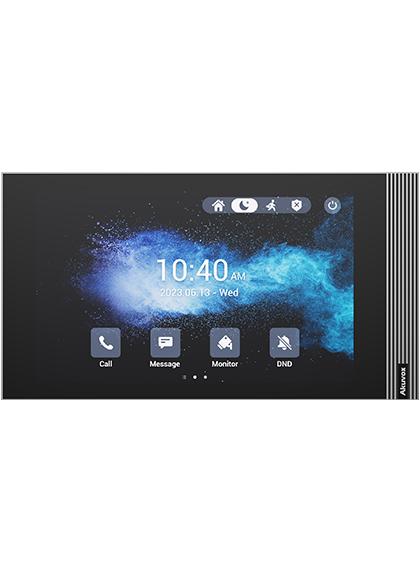

The Akuvox S562 is a compact 7-inch SIP video indoor monitor built on a Linux platform, designed to provide reliable intercom functionality without compromising on aesthetics. With a modern, minimal footprint and responsive capacitive touch display, the S562 is a great fit for villas, apartments, and space-conscious smart home installations.
Despite its small size, this device is loaded with powerful features like SIP communication, PoE support, and high-performance audio and video processing, making it a dependable choice for mid-range smart residential and commercial applications.
Key Features
-
7” capacitive TFT LCD touchscreen with 1024 x 600 resolution
-
Built on Linux OS for optimized performance and security
-
SIP v1/v2 protocol support for seamless network integration
-
Built-in microphone and speaker with echo cancellation
-
Wall-mounted or desktop installation options
-
Dual Ethernet ports with PoE and 12V DC support
-
Web portal for remote management and diagnostics
-
Compact, modern design with tamper-resistant build
Technical Specifications
Display
-
Size: 7-inch TFT LCD
-
Resolution: 1024×600
-
Touch Type: Projected capacitive
-
Brightness: 250 cd/㎡
-
Contrast Ratio: 600:1
-
Display Mode: Normally white, transmissive
-
Viewing Angle: 50° Left/Right, 40° Upper, 50° Lower
Audio & Communication
-
Microphone: -42 dB sensitivity
-
Speaker: 4Ω / 2W
-
Audio Codecs: G.711a/u, G.729 (narrowband), G.722 (broadband)
-
Echo Cancellation, AGC, DTMF (RFC2833, SIP Info)
Video & Intercom
-
Streaming Format: H.264
-
Protocols: SIP v1/v2 (RFC2543/RFC3261)
-
Two-way SIP communication
Networking & Integration
-
Wi-Fi: Not supported
-
Ethernet: 2 x RJ45, 10/100 Mbps
-
RS485 Port: Yes
-
Relay Output: 1
-
Bell Input: 1
-
I/O Channels: 8
-
Power: 802.3af PoE or 12V DC
Deployment & Management
-
Auto-Provisioning
-
Remote web portal
-
Web-based packet dump
-
Configuration backup and restore
-
Firmware upgrade support
-
System logs (including door access logs)
Build & Installation
-
Material: Plastic front panel
-
Dimensions: 216.4 x 118.8 x 21.7 mm
-
Installation: Wall-mounted & Desktop
-
Operating Temp: -10°C to +45°C
-
Storage Temp: -20°C to +70°C
-
Humidity Range: 10% to 90% RH
Ideal Applications
-
Residential villas and apartments
-
Office or multi-unit building intercom systems
-
Smart home automation networks
-
Projects requiring compact, high-function SIP monitors
Why Choose the Akuvox S562?
The Akuvox S562 delivers the perfect blend of space-saving design, Linux-based reliability, and modern intercom functionality. Whether you’re upgrading a legacy system or building new smart infrastructure, the S562 brings clear communication, simple installation, and robust integration options to your space.
