Overview

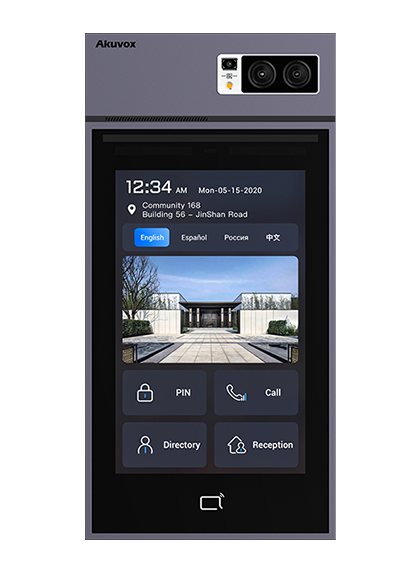

The Akuvox S539 Video Door Phone sets a new benchmark for intelligent access control. With its sleek terraced design and vibrant 10-inch IPS touchscreen, it merges cutting-edge security technology with a modern aesthetic. Powered by Android OS and featuring a 5MP starlight camera, multi-access authentication methods, and a friendly interactive avatar, it delivers a secure and intuitive user experience—perfect for luxury apartments, office buildings, and smart communities.
Key Features
- 10″ IPS LCD touchscreen with intuitive user interface
- 5MP starlight camera with HDR and wide 120° viewing angle
- 15+ access methods including Face ID, PIN, RFID, BLE & QR code
- Interactive avatar for user-friendly communication
- Dual microphones and dual speakers for clear two-way audio
- IP66 & IK08 rated for waterproof and vandal-proof protection
- Android OS for third-party application integration
- PoE+ or DC-powered with flush and wall mounting options
Specifications
Physical & Power
- Front Panel: Aluminum
- Display: 10″ IPS LCD
- Main Camera: 5MP starlight CMOS
- Sensors: Light, Motion, ToF
- RF Card Reader: 13.56MHz & 125kHz
- Relays Out: 3
- Inputs: 3
- Microphones: 2
- Speakers: 2
- BLE: Supported
- Ethernet: RJ45, 10/100Mbps
- Power: PoE+ (IEEE 802.3at) or 12V/3A, 24V/1.5A DC
- IP & IK Rating: IP66 & IK08
- Installation: Flush or Wall-mounted
- Dimensions: Flush: 363.5×179.8×64mm / Wall: 367.5×183×35.5mm
- Operating Temperature: -30°C to +55°C
- Storage Temperature: -30°C to +70°C
- Humidity: 10%–90%
Audio
- SIP v1 & v2 compliant
- Audio codecs: G.711a, G.711μ, G.729, G.722
- DTMF: In-band, RFC2833, SIP Info
- Echo cancellation, voice activation detection, comfort noise
Video
- Sensor: 1/2.7” CMOS
- Resolution: Up to 1080p @ 30fps
- Viewing Angle: 120° (H) / 72° (V)
- Video Codec: H.264 with HDR
- Night Vision: High-intensity IR LEDs, auto LED mode
- Min. Illumination: 0.1 LUX
- ONVIF compliant, works with third-party NVRs
Access Control
- Supports: Face ID, RFID card, PIN, BLE, QR code
- 3 individually controlled relays via DTMF
- Permanent video stream for security monitoring
Networking & Protocols
- Supports: IPv4, HTTP/HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management interface
- Backup/restore configurations
- Firmware upgrades
- Access and event log export
Ideal Applications
Perfect for residential complexes, office buildings, gated communities, and industrial facilities seeking a premium, secure, and interactive access control solution.
Why Choose the Akuvox S539 Video Door Phone?
If you’re seeking a smart intercom that delivers more than just door entry, the Akuvox S539 is the ideal solution. It combines premium aesthetics with powerful performance, offering an ultra-responsive interface, ultra-secure access options, and a rich user experience through its built-in avatar. Whether for residential or commercial use, the S539 brings the future of video door entry to your doorstep—reliable, interactive, and built to impress.
