Overview

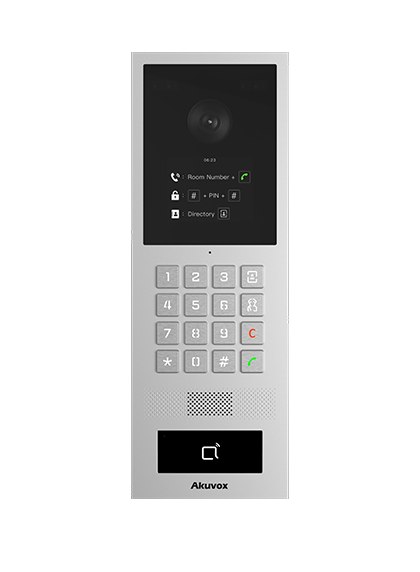

The Akuvox S532 bridges the gap between analog and IP intercom systems by combining SIP-based smart features with a built-in IP-to-analog conversion module. Featuring a compact and durable design, 2.8″ display, HD camera, and numeric keypad, it is the perfect choice for modernizing traditional intercom infrastructure in residential and commercial environments.
Key Features
- 2M pixel HD camera with 130° (H) / 90° (V) wide viewing angle
- IP-to-analog conversion for legacy system upgrades
- 2.8-inch display and numeric keypad for versatile access control
- Multiple access methods: RF card reader, BLE, NFC, keypad
- Supports PoE (802.3at) for flexible installation
- Auto-night mode with IR LEDs for low-light environments
- Flush or wall-mounted installation options
- IP66 waterproof and IK08 vandal-resistant enclosure
Specifications
Physical & Power
- Front Panel: Aluminum
- Display: 2.8-inch LCD
- Camera: 2M pixels, automatic lighting
- Keypad: Numeric + extra buttons
- Light Sensor, Motion Sensor: Supported
- RF Card Reader: 13.56MHz & 125kHz, NFC
- Microphone: 1 | Speaker: 1
- BLE: Supported
- Relay Outputs: 2 | Inputs: 4
- Analog Audio Out & TF Card Slot: Supported
- Reset & Tamper Alarm: Supported
- Ethernet: RJ45, 10/100Mbps adaptive
- Power: PoE (802.3at) or 12V DC
- Ingress Protection: IP66 | Impact Rating: IK08
- Installation: Flush-mounted & Wall-mounted
- Dimensions: 310x106x37.8mm
- Working Temp: -40°C ~ +60°C | Humidity: 10~90%
Audio
- Protocols: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Codecs: G.711a, G.711μ, G.722
- DTMF: In-band, RFC2833, SIP Info
- Echo Cancellation, Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8” CMOS
- Resolutions: CIF, VGA, 4CIF, 720p, 1080p
- Video Codec: H.264
- Viewing Angle: 130° (H) / 90° (V)
- IR LEDs for night vision
- Minimum Illumination: 0.1 LUX
- Compatible with NVRs and third-party video systems
Networking & Protocol
- Supported Protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning and Web Management Portal
- Web-Based Packet Dump
- Configuration Backup & Restore
- Entry Log Export and Access Table Import/Export
- Firmware Upgrade
- Detailed System Logs
Application Scenarios
Ideal for modernizing analog door phone systems in office buildings, commercial complexes, and residential developments—enabling smart, secure, and connected access control.
Why Choose the Akuvox S532?
- Upgrade Analog Systems: Seamlessly transition from analog to IP systems with built-in conversion module.
- Crystal-Clear Communication: Equipped with a 2M pixel camera and wide 130° viewing angle for enhanced visibility.
- Enhanced Access Options: Multiple unlock methods including RF card reader, BLE, and numeric keypad input.
- Rugged & Weatherproof: Built to withstand the elements with IP66 and IK08 ratings.
- Secure Integration: Compatible with third-party NVRs and SIP-based PBX systems.
