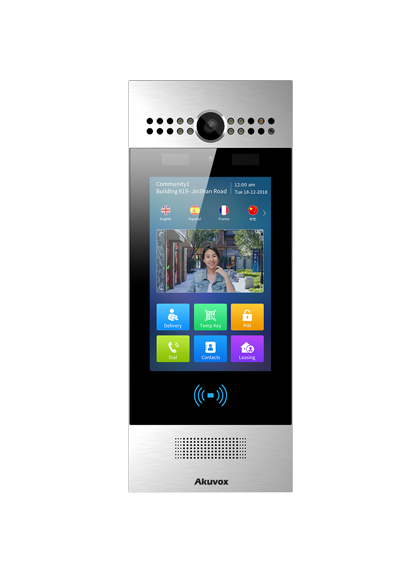

Overview
The Akuvox R29 is a SIP-enabled smart door phone that integrates a 7-inch touch screen with AI-powered offline facial recognition. Designed for apartment complexes, high-rise offices, and commercial buildings, it offers intelligent access control with anti-spoofing dual cameras, secure communication, and seamless integration with third-party systems.
Key Features
- 7-inch capacitive touch screen with a modern, intuitive interface
- Dual cameras for advanced anti-spoofing and facial recognition
- Face verification accuracy >99.9%, speed <0.5s per person
- Supports video/audio communication with IP phones or mobile apps
- Remote door unlocking and monitoring via SIP
- Flush or wall-mounted with IP65 & IK06 protection
- Supports card, PIN, BLE, and face unlock methods
Specifications
Physical & Power
- Front Panel: Aluminum
- RAM / ROM: 2GB / 16GB
- Display: 7″ IPS LCD (capacitive touchscreen)
- Main Camera: 2MP with automatic lighting
- Auxiliary Camera: 1MP
- Light Sensor & Infrared Sensor: Supported
- RF Card Reader: 13.56MHz & 125kHz
- Relays In/Out: 3 / 3
- Microphone: -32dB | Speaker: 8Ω / 2W
- Wiegand & RS485 Ports: Supported
- Bluetooth: Supported
- Ethernet: RJ45, 10/100Mbps adaptive
- Power: IEEE 802.3at PoE / 12V DC
- Protection Rating: IP65 / IK06
- Installation: Flush-mounted & Wall-mounted
- Dimensions (Flush): 324x130x60mm
- Dimensions (Wall): 324x130x33mm
- Working Temp: -20°C ~ +55°C | Humidity: 10~90%
Audio
- SIP v1 & v2 (RFC2543, RFC3261)
- Audio Codecs: G.711a, G.711μ, G.729, G.722
- DTMF: In-band, RFC2833, SIP Info
- Echo Cancellation, Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8” CMOS
- Video Resolution: up to 1920x1080p (1080p)
- Codecs: H.264 | Frame Rate: 25fps
- Viewing Angle: 105°(H) / 55°(V)
- IR LEDs for night vision & white LEDs for QR code scanning
- Compatible with 3rd-party NVRs and video platforms
Networking & Protocols
- Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry & Management
- Android OS for third-party customization
- Relay Control via DTMF Tones
- Multi-way Unlock: Face, Card, PIN, BLE
- Always-on Camera with Auto-night Mode
- White Balance: Auto | Minimum Illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning & Web Portal
- Firmware Upgrade & Config Backup/Restore
- System Logs & Entry/Access Log Export
Application Scenarios
- Smart access control for apartments, office buildings, and large-scale complexes
- Remote entry management over Internet or IP-PBX
- Custom welcome interface and business information display
Why Choose the Akuvox R29?
The Akuvox R29 provides an elegant, secure solution for smart building access. Whether deployed in residential towers or commercial offices, its powerful facial recognition engine and dual-camera anti-spoofing protection ensure only authorized individuals gain entry. Its Android-based system offers extensive customization, while seamless third-party compatibility supports enterprise integration.
