Overview

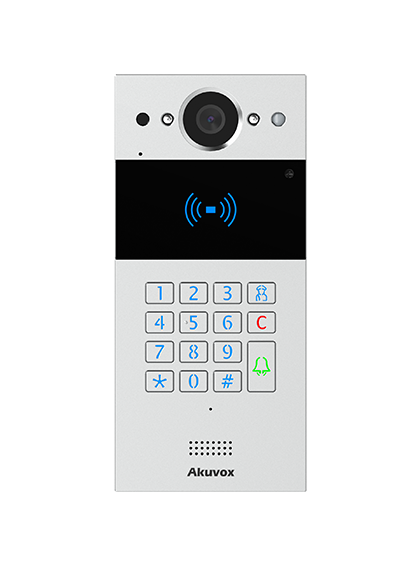

The Akuvox R20K is a space-saving, compact SIP video doorphone featuring a built-in numeric keypad, making it ideal for apartment buildings, offices, and commercial facilities. With a durable aluminum alloy body, wide-angle camera, and multiple access methods, it provides secure and convenient entry management while saving installation space.
Key Features
- Space-saving design with integrated numeric keypad
- Wide-angle camera with 110° (H) / 58° (V) viewing angle
- High-definition video streaming up to 1080p
- Support for both H.265 and H.264 video codecs
- Vandal-resistant aluminum alloy front panel
- Touchless card access with 13.56MHz and 125kHz RFID support
- PoE (IEEE802.3af) and 12V DC power options
- Auto-night mode with infrared LED lighting
- IP65-rated water and dust resistance
- Flush-mounted or wall-mounted installation options
- Compatibility with third-party video systems (ONVIF, NVRs)
- Comprehensive SIP-based communication with Echo Cancellation
Technical Specifications
Physical & Power
- Front Panel: Aluminum alloy
- Camera: 2MP, automatic lighting
- Numeric Keypad: Integrated, with additional buttons
- Light Sensor: Supported
- Infrared Sensor: Supported
- Wiegand Port: Supported
- RS485 Port: Supported
- RF Card Reader: 13.56MHz and 125kHz
- Relays Out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 42Ω / 3W
- Ethernet Port: RJ45, 10/100Mbps adaptive
- Power Supply: 802.3af PoE or 12V DC connector
- Waterproof & Dustproof Rating: IP65
- Installation: Flush-mounted or Wall-mounted
- Flush-mounted Dimensions: 226x108x52mm
- Wall-mounted Dimensions: 185x85x29mm
- Working Humidity: 10~90%
- Working Temperature: -30°C ~ +65°C
- Storage Temperature: -40°C ~ +70°C
Audio
- Protocols: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband Audio Codec: G.711a, G.711μ, G.729
- Broadband Audio Codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3” CMOS
- Resolution Options: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video Codec: H.265 & H.264
- Max Transfer Rate: 720p – 30fps
- Viewing Angle: 110°(H) / 58°(V)
- Infrared Night Vision: High-intensity IR LEDs with internal light sensor
- Third-party Video Integration: Compatible with NVRs and ONVIF systems
Door Entry Features
- Relays controlled individually via DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- Automatic white balance
- Minimum Illumination: 0.1LUX
Networking & Protocol
- Supported Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning support
- Web Management Portal
- Web-based Packet Dump
- Configuration Backup/Restore
- Entry Log Export
- Access Table Export/Import
- Firmware Upgrade Support
- Comprehensive System Logs (including door access logs)
Why Choose the Akuvox R20K?
The Akuvox R20K combines compact design with full-featured access control and video intercom functionality. Its rugged, IP65-rated body, dual-frequency RFID support, and flexible installation options make it ideal for secure access in a variety of commercial and residential settings. With reliable SIP-based communication and seamless third-party integration, the R20K ensures high-quality, future-proof building entry management.
