Overview

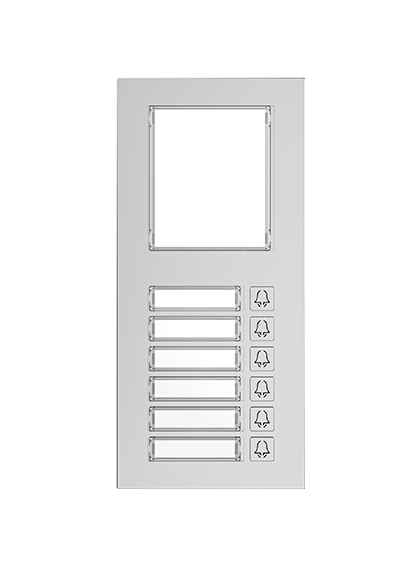

The Akuvox MD06 module expands the functionality of the R20K and R20B systems by adding six backlit mechanical buttons with name tags, streamlining speed dial access for key contacts—ideal for departments, offices, and room-based setups. It marks a significant upgrade in both usability and flexibility.
Key Features
- 6 backlit mechanical speed-dial buttons with name tags
- RS485 connectivity for seamless expansion
- IP65-rated aluminum alloy front panel
- Flush-mounted installation for a sleek profile
- Designed to extend R20K and R20B video door phones
Specifications
- Front Panel: Aluminum alloy
- Buttons: 6 mechanical speed-dial buttons with backlight
- Ports: 2x RS485
- Power In: 12V DC / 600mA
- Power Out: 12V DC / 500mA (Max.)
- Installation: Flush-mounted
- IP Rating: IP65
- Working Temperature: -30°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
- Working Humidity: 10% ~ 90%
Why Choose the Akuvox MD06?
- Efficient Communication: Offers six speed-dial mechanical buttons for rapid access to frequently used contacts.
- Integrated Illumination: Backlit buttons ensure visibility in low-light environments.
- Seamless Integration: Designed to work with Akuvox R20K and R20B intercom systems via RS485.
- Durable Design: Aluminum alloy front panel with IP65-rated protection for reliable indoor and semi-outdoor installation.
- Compact Form Factor: Flush-mounted structure blends well with surrounding wall surfaces.
