Overview

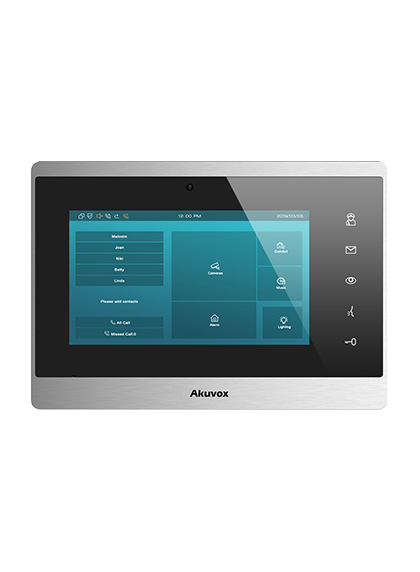

The Akuvox IT82 is a 7-inch Android-based indoor monitor featuring five conveniently located soft-touch buttons that can be customized for specific application needs. It is commonly installed in mid- to high-end residential settings.
Key Features
- Ultra-clear, stylish appearance
- 7-inch capacitive touch screen with energy-saving mode
- Built-in 1MP CMOS camera
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Supports US or European electrical wall box mounting
Technical Specifications
Physical & Power
- Front panel: Aluminum
- RAM / ROM: 2GB / 8GB
- Display: 7 Inch TFT LCD
- Screen: 7 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- Camera: 1MP camera, CMOS
- Buttons: 5 capacitive buttons, programmable
- Memory slot: 1 SD slot
- RS485 port: Support
- Relay out: 1
- I/O: 8
- Microphone: -38dB
- Speaker: 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- Power: 802.3af PoE or 12V DC connector
- Installation: Wall-mounted & Desktop
- Dimension: 232x160x27.8mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Active matrix TFT, Transmissive
- LCD Size: 7 inch (Diagonal)
- Aspect Ratio: 16:9
- Resolution: 1024×600
- Contrast ratio: 800:1
- Luminance: 270 cd/m²
- Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
- Touch Screen: Projected capacitive
Audio
- SIP Support: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF Support: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection (VAD)
- Comfort Noise Generator
- Automatic Gain Control (AGC)
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols supported: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (including door access logs)
Ideal Applications
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
Why Choose the Akuvox IT82?
The Akuvox IT82 combines stylish design with powerful functionality, making it an excellent choice for smart residential installations. With features like two-way audio, customizable soft-touch buttons, and seamless integration with SIP networks, it is the perfect solution for homes looking to combine convenience, elegance, and performance.
