Overview

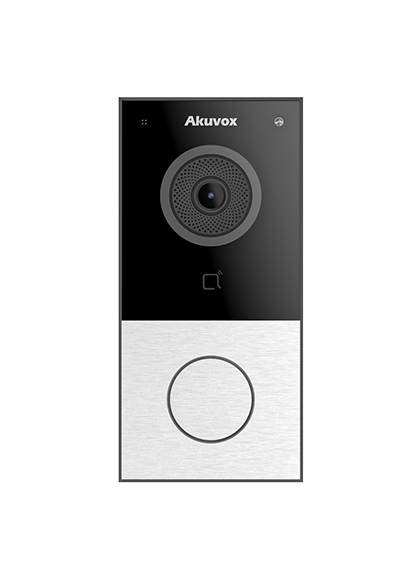

The Akuvox E12 is a single-button SIP video door phone suitable for all types of front doors, including houses, apartments, and condos. Its slim design houses advanced features like mobile access and wireless communication, delivering modern convenience in a compact form.
Key Features
- Compact body with vandal alarm and backlit call button
- 2MP camera with automatic lighting and 123° field of view
- White LED illumination for low-light environments
- RF card reader and tamper detection support
- Wi-Fi and BLE connectivity options (model-dependent)
- Weatherproof with IP65 rating
Specifications
Physical & Power
- Body Material: Plastic
- Camera: 2M pixels, automatic lighting
- Button: 1 call button with backlight
- Light sensor: 1
- Relays out: 1
- Inputs: 2
- Micro SD card slot: 1
- Microphone: -36dB
- Speaker: 8Ω / 1.5W
- Ethernet port: RJ45, 10/100Mbps adaptive
- Wi-Fi: IEEE802.11b/g/n, 2.4GHz (E12W only)
- BLE: Supported
- Wiegand port: Supported
- RF card reader: 13.56MHz
- Vandal alarm: Yes
- Power input: 802.3af PoE or 12V DC
- Power: 12V / 1A
- IP Rating: IP65
- Installation: Wall-mounted
- Size: 146×70×23mm
- Working Temperature: -40°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
- Humidity: 10~90%
Audio
- Protocols: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband codecs: G.711a, G.711μ, G.729
- Wideband codec: G.722
- DTMF: In-band, RFC2833, SIP Info
- Echo Cancellation, VAD, CNG supported
Video
- Sensor: 1/2.7″ CMOS
- Resolutions: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Max Resolution: 1920x1080p @ 25fps
- Viewing Angle: 123°(H) / 69°(V)
- Video Codecs: H.264, H.265
- White LED illumination for night vision
Door Entry Features
- Relay control via DTMF
- Auto night mode with LED lighting
- White balance: Auto
- Minimum illumination: 0.1LUX
Networking & Protocols
- Supported: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-provisioning
- Web management portal
- Configuration backup / restore
- Entry log export / import
- Firmware upgrade
- System logs (including access logs)
Application Scenarios
- Home or apartment door phone with SIP video intercom
- Entry solution with mobile and card-based access
- Remote site access over Internet
Why Choose the Akuvox E12?
- Elegant and slim form factor for modern entrances
- 1080p full HD camera with wide-angle view
- Supports BLE and Wi-Fi for wireless access (E12W only)
- Secure RFID access with 13.56MHz reader
- Two-way SIP audio with echo cancellation
- Seamless integration with IP PBXs and video systems
