Overview

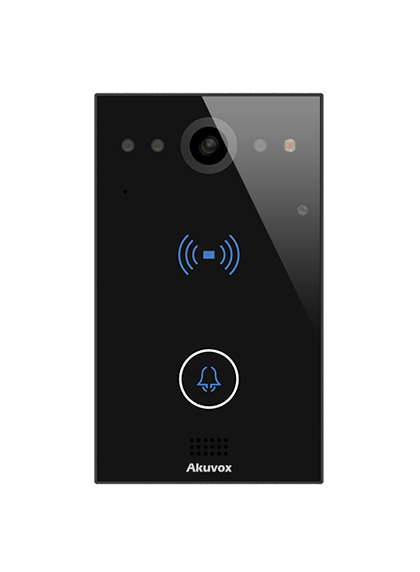

The Akuvox E11 is a compact and stylish SIP video door phone designed for villas, houses, and apartment units. It combines elegant design with advanced functionality, offering two-way IP communication, RFID access control, and wide-angle video surveillance in a small footprint ideal for residential settings.
Key Features
- Wide-angle camera: 116° (H), 60° (V)
- PoE (IEEE802.3af, Power-over-Ethernet)
- Echo Cancellation and Comfort Noise Generator
- ONVIF-compliant for network video integration
- Tamper alarm and IR LEDs for enhanced security
Specifications
Physical & Power
- Body Material: Plastic
- Camera: 2M pixels with automatic lighting
- Button: 1 call button
- Light sensor & infrared sensor supported
- Wiegand port: Supported
- RF Card Reader: 13.56MHz & 125kHz
- Relays Out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 4Ω / 3W
- Ethernet Port: RJ45, 10/100Mbps adaptive
- Power: 802.3af PoE or 12V DC
- Installation: Wall-mounted
- Dimensions: 145 x 85 x 27.5 mm
- IP Rating: IP65
- Operating Temp: -20°C ~ +65°C
- Storage Temp: -40°C ~ +70°C
- Humidity: 10~90%
Audio
- Protocols: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Codecs: G.711a, G.711μ, G.729, G.722
- DTMF: In-band, RFC2833, SIP Info
- Echo Cancellation, VAD, CNG
Video
- Sensor: 1/2.7” CMOS
- Resolution: up to 1280x720p
- Frame Rate: 720p @ 30fps
- Viewing Angle: 116° (H) / 60° (V)
- IR LEDs with light sensor for night vision
- Video Codec: H.264
- Compatible with third-party NVRs
Door Entry Features
- Relays controlled by DTMF tones
- Camera permanently operational
- Auto-night mode with IR LEDs
- White balance: Auto
- Minimum illumination: 0.1 LUX
Networking & Protocol
- Supported Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Packet dump via web interface
- Config backup & restore
- Export/import entry logs and access tables
- Firmware upgrades
- System logs (including access logs)
Application Scenarios
- Office door phone with on-site or hosted IP PBX
- Apartment or villa intercom with door access control
- Remote site entry over the internet
Why Choose the Akuvox E11?
- Compact and stylish design fits any residential entrance
- Two-way audio over IP with echo cancellation for clear communication
- Wide-angle 116° HD video camera with IR illumination
- RF card reader supporting 13.56MHz & 125kHz for flexible access
- PoE support for simple single-cable installation
- Seamless integration with SIP PBX and ONVIF-compliant systems
