Overview

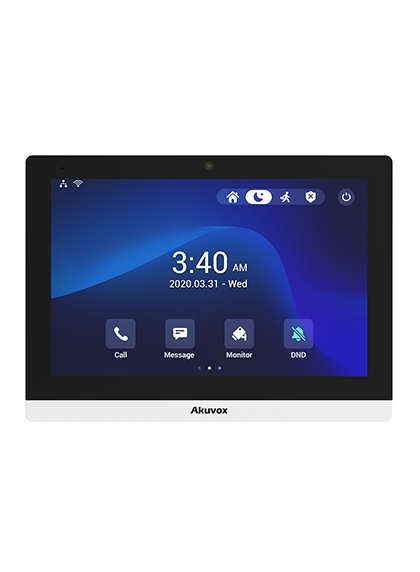

The Akuvox C316 is a 7-inch SIP indoor monitor running on Android 12 OS, designed for stylish, mid-range smart living environments. Featuring a vibrant touchscreen, flexible installation options, and seamless smart home integration, it brings modern convenience to residential spaces.
Perfect for apartments, villas, and multi-residential projects where simplicity meets sophistication.
Key Features
- 7” capacitive touchscreen (1024 x 600 resolution)
- Android 12 OS with 2GB RAM + 8GB ROM
- Wall-mounted or desktop installation options
- Supports PoE (802.3af) or 12V DC input
- Plastic front panel design
- Built-in microphone and speaker for clear communication
- Minimalist design ideal for modern interiors
- Easy integration into smart home and intercom systems
Technical Specifications
Display
- Size: 7-inch TFT LCD
- Resolution: 1024 x 600
- Touch Type: Capacitive touchscreen
- Contrast Ratio: 800:1
- Brightness: 270 cd/㎡
- Viewing Angle: 75° left/right, 70° up, 75° down
Audio & Communication
- Microphone: -58dB sensitivity
- Speaker: 4Ω / 2W
- Audio Codecs: G.711a, G.711μ, G.729, G.722
- DTMF Support: In-band, RFC2833
Networking & Integration
- Ethernet: 1 x RJ45 (10/100 Mbps)
- Power Supply: PoE (802.3af) or 12V DC input
System & Performance
- Operating System: Android 12
- Memory: 2GB RAM / 8GB ROM
Physical & Environmental
- Material: Plastic front panel
- Installation: Wall-mounted or desktop
- Dimensions: 200.2 x 132.2 x 27.2mm
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -20°C to +70°C
- Humidity: 10% to 90% RH
Ideal Applications
- Smart residential apartments and villas
- Multi-residential and MDU deployments
- Modern home automation and access control projects
Why Choose the Akuvox C316?
Sleek, reliable, and highly integratable — the Akuvox C316 combines smart features and contemporary design, making it a top choice for stylish smart living environments.
