Overview

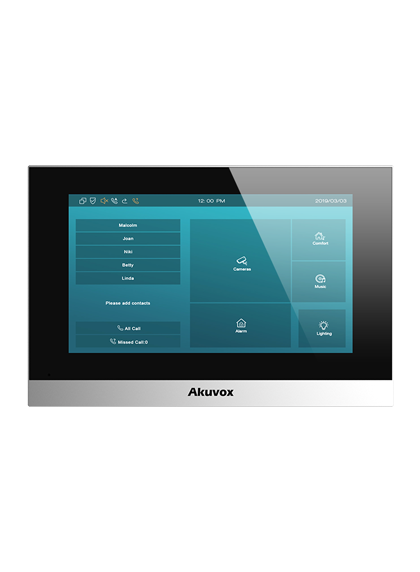

The Akuvox C315 is a 7-inch Android indoor monitor featuring a compact design that fits easily into tight spaces while delivering a wide range of features. It is commonly used in apartment settings and modern interiors, providing a sleek and efficient solution for smart living environments.
Its thin profile, intuitive touchscreen, and SIP-based communication capabilities make it ideal for enhancing residential security and connectivity.
Key Features
-
Ultra-clear, stylish appearance
-
Thin profile and small footprint
-
7-inch capacitive touch screen with energy-saving mode
-
Two-way audio communication with other units in the network
-
Complies with SIP standard for easy integration with SIP PBXes
-
Powered by PoE or external power source
-
Supports US or European electrical wall box mounting
Technical Specifications
Display
-
Size: 7-inch TFT LCD
-
Resolution: 1024×600
-
Touch Type: Projected capacitive
-
Brightness: 270 cd/㎡
-
Contrast Ratio: 800:1
-
Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
Audio & Communication
-
Microphone: -58 dB sensitivity
-
Speaker: 4Ω / 2W
-
Audio Codecs: G.711a, G.711μ, G.729, G.722
-
Advanced Features: Echo Cancellation, AGC, VAD, Comfort Noise Generator
-
DTMF Support: In-band, RFC2833, SIP Info
Video
-
Streaming Formats: H.263, H.264
Networking
-
Wi-Fi: IEEE802.11b/g/n, 2.4GHz
-
Ethernet Ports: 2 x RJ45, 10/100Mbps adaptive
-
Supported Protocols: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Physical & Power
-
Front Panel: Plastic
-
RAM/ROM: 1GB / 8GB
-
Power: PoE 802.3af or 12V DC
-
Installation: Wall-mounted & Desktop
-
Dimensions: 200.2×132.2×27.2mm
-
Humidity: 10%-90%
-
Temperature: -10°C~+45°C (Working), -20°C~+70°C (Storage)
Deployment & Maintenance
-
Auto-provisioning support
-
Web management portal
-
Web-based packet capture
-
Firmware upgrades and system logs
Ideal Applications
-
Villas
-
Apartment complexes
-
Home automation systems
-
Modern interiors
Why Choose the Akuvox C315?
The Akuvox C315 stands out for its combination of sleek aesthetics, robust performance, and ease of use. Designed to fit into any modern residential environment, it offers powerful communication features, intuitive controls, and seamless integration into smart home systems. Whether for apartment complexes or luxury villas, the C315 ensures secure and convenient living with the latest technology.
