Overview

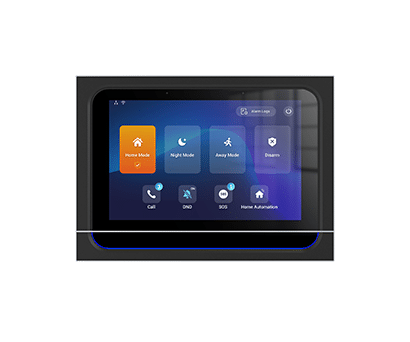

Akubela SmartPanel is a sleek and modern home control panel featuring a large 10.25″ full HD touch screen, intuitive interaction, and support for Zigbee and RS485 protocols. Designed to unify control of smart home devices like lighting, curtains, HVAC, and more, it brings a highly integrated and responsive experience to luxury residences and commercial environments.

Specifications

Display & Interface

• 10.25-inch IPS touch screen with 1920 x 720 resolution
• Capacitive multi-touch technology
• Customizable interface with intuitive navigation

Performance & Hardware

• Quad-core Cortex-A35 processor
• 2GB RAM and 16GB eMMC storage
• Responsive system for smooth operation

Smart Home Integration

• Supports Zigbee 3.0 protocol
• RS485 interface for KNX and other integrations
• Control over lighting, scenes, HVAC, curtains, music, and more

Design & Installation

• Minimalist design in black and white options
• Compatible with standard 86-type mounting boxes
• Dimensions: 258.6 x 86 x 17.6 mm

Connectivity & Audio

• Built-in microphone and speaker
• 3 configurable physical shortcut buttons

Power & Environmental

• Power supply: 12V DC or PoE (IEEE 802.3af)
• Operating temperature: -5°C to +45°C
• Humidity: 10% to 90% RH (non-condensing)

Application Scenarios

• Luxury residences and smart villas
• High-end apartments and condominiums
• Hotels and executive suites
• Office buildings and commercial spaces

Why Choose the Akubela SmartPanel?

With its immersive display, responsive performance, and extensive protocol support, Akubela SmartPanel stands out as the centerpiece of premium smart living. Its large screen offers unparalleled clarity and usability, while its elegant design complements any modern interior.
