Overview

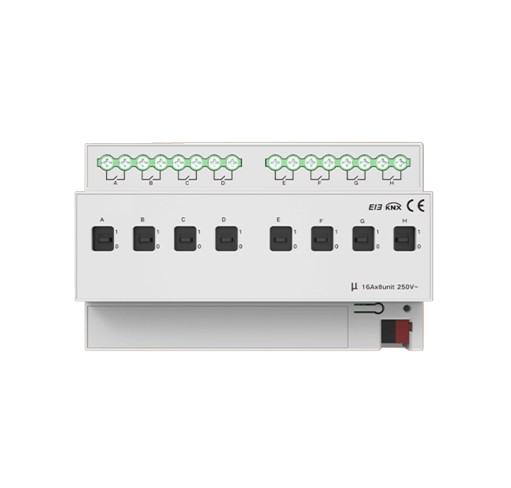

The Akubela KNX Switch Module (8-Gang, 16A) is a high-capacity KNX actuator designed for controlling multiple electrical circuits in smart buildings. Supporting up to eight independent outputs with a maximum current of 16A per channel, this module offers reliable and flexible switching for lighting, outlets, and other appliances.
Specifications
Key Features
- Controls up to 8 circuits with 16A output per channel
- Flexible configuration for lighting and appliance control
- Manual test buttons and status LEDs for on-site diagnostics
- Ideal for residential, commercial, and industrial automation
Electrical Performance
- 8 independent relay outputs
- Maximum current per channel: 16A
- Rated voltage: 230V AC, 50/60Hz
- Total output power: up to 3680W per channel
KNX Integration
- Fully compliant with KNX standard
- Supports manual operation via test buttons
- Each channel independently programmable
Design & Installation
- DIN-rail mountable design
- Status LED indicators for each output
- Secure terminal connections
Environmental
- Operating temperature: -5°C ~ +45°C
- Storage temperature: -20°C ~ +60°C
- Relative humidity: 5% ~ 93% (non-condensing)
Application Scenarios
- Smart homes with centralized lighting control
- Office buildings with automated energy management
- Industrial environments requiring high-load switching
Why Choose the Akubela KNX Switch Module?
Engineered for power and reliability, the Akubela KNX Switch Module (8-Gang, 16A) delivers dependable performance for a wide range of automation needs. It empowers integrators with fine-grained control, robust protection, and smooth installation in any KNX project.
