Overview

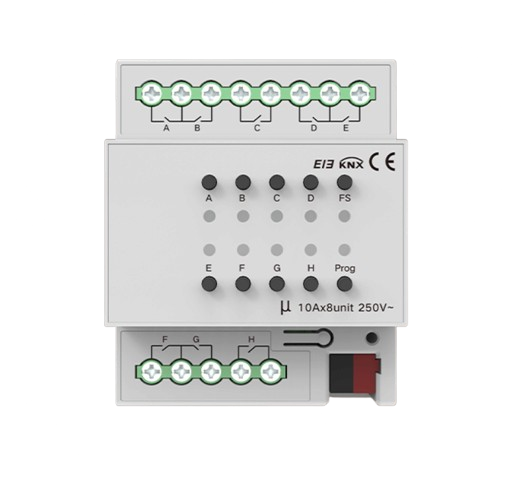

The Akubela KNX Switch Module (8-Gang, 10A) is a compact and efficient KNX actuator designed for smart home and commercial automation. With eight relay outputs and support for 10A per channel, it ensures reliable switching of lighting and electrical loads in KNX-based control systems.
Specifications
Key Features
- 8-channel switching with 10A per channel
- Ideal for mid-sized KNX installations
- Flexible configuration for various applications
- LED feedback and manual override functions
Electrical Performance
- 8 relay outputs (independent)
- Maximum current per channel: 10A
- Rated voltage: 230V AC, 50/60Hz
- Maximum load per channel: 2300W
KNX Integration
- Fully compliant with the KNX standard
- Programmable outputs for scene and logic functions
- Supports timed switching and priority control
Design & Installation
- DIN-rail mounting for easy cabinet integration
- Manual control buttons for local operation
- Status LED indicators for each channel
Environmental
- Operating temperature: -5°C ~ +45°C
- Storage temperature: -20°C ~ +60°C
- Humidity: 5% ~ 93% RH (non-condensing)
Application Scenarios
- Smart residential buildings
- Offices with centralized control
- Commercial spaces requiring modular switching
Why Choose the Akubela KNX Switch Module?
The Akubela KNX Switch Module (8-Gang, 10A) delivers efficient and intelligent load switching for KNX environments. Its compact design, ease of integration, and reliable performance make it a trusted choice for both residential and commercial automation projects.
