Overview

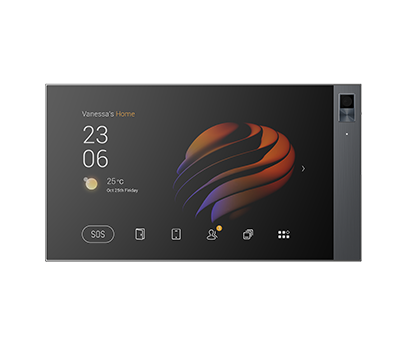

The Akubela HyPanel Pro is a sophisticated smart home panel that brings together functionality and aesthetics. It integrates control, communication, and intelligent interaction in one device, making it ideal for modern smart home environments. With its expansive display and intuitive interface, it allows for seamless control of lighting, climate, security, and more—all from a single panel.
Key Features
- Elegant and minimalist design with full-screen touch display
- Controls lighting, HVAC, curtains, music, and smart scenes
- Integrated KNX, Zigbee 3.0, Bluetooth, and Wi-Fi connectivity
- Supports video intercom, call answering, and message reception
- Highly responsive capacitive touch interface
- Customizable home screen and widgets
Specifications
Display
- Size: 7-inch IPS touchscreen
- Resolution: 1280 × 800
- Touch Type: Capacitive multi-touch
Interfaces & Connectivity
- 1 × RJ45 (Ethernet)
- KNX interface
- Zigbee 3.0
- Wi-Fi: 2.4GHz / 5GHz
- Bluetooth 5.0
Power & Installation
- Power Supply: 24V DC (via KNX/PoE adapter)
- Installation: Standard EU wall box (86mm or similar)
Audio & Communication
- Built-in speaker and microphone
- Supports SIP intercom features
Environment
- Operating Temperature: -5°C to +45°C
- Relative Humidity: 10% – 90% RH (non-condensing)
Application Scenarios
- Smart apartments and villas
- Luxury hotel rooms
- Offices and commercial spaces
Why Choose the Akubela HyPanel Pro?
The HyPanel Pro is the ideal choice for users seeking powerful smart home control with premium aesthetics. Its large touchscreen, multi-protocol support, and advanced features bring a luxurious experience to every space—whether residential or commercial.
