Overview

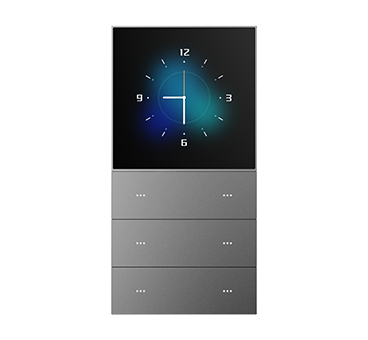

The Akubela HyPanel KeyPlus is a sleek and compact smart home panel that combines high-performance control features with a stylish keypad interface. Designed to fit modern smart homes, the KeyPlus provides intuitive scene control, device management, and real-time status monitoring — all from a minimalistic touch-based interface. With integrated Zigbee 3.0 and RS485 support, it serves as a powerful control center for lighting, HVAC, curtains, and more.
Key Features
- 3.5-inch IPS touch display with high brightness and wide viewing angles
- Elegant keypad design with 6 customizable touch buttons
- Built-in Zigbee 3.0 gateway and RS485 for versatile device connectivity
- Supports multiple smart scenes and customizable automation
- Two-way communication with real-time status updates
- Flush-mounted for a seamless look with the wall
- Optional built-in temperature and humidity sensors
Specifications
Smart Home Integration
- Zigbee 3.0 protocol support for seamless device integration
- RS485 interface for third-party device control
- Supports curtain, lighting, and HVAC control
- Control multiple smart scenes with one touch
Display & Interface
- 3.5” capacitive touch screen
- Resolution: 480 x 320
- 6 customizable touch keys with LED indicators
Connectivity
- Wired network: 10/100Mbps Ethernet port
- Wireless protocol: Zigbee 3.0
- RS485 interface for external system communication
Installation & Design
- Flush-mounted installation
- Glass touch panel with aluminum frame
- Compact form factor suitable for standard 86-type back box
Power & Environment
- Power supply: 12V DC
- Power consumption: <2W
- Working temperature: -10°C ~ +50°C
- Working humidity: 10%~90% RH, non-condensing
Dimensions
- Panel dimensions: 86mm × 86mm × 10mm
Ideal For
- Luxury apartments and villas
- Smart hotels and offices
- Renovation projects requiring flush-mounted smart controls
Why Choose the Akubela HyPanel KeyPlus?
The Akubela HyPanel KeyPlus offers a refined balance of simplicity and power. Its compact design makes it ideal for spaces where a full-sized control panel might be overwhelming, yet it still delivers seamless smart home control through Zigbee and RS485 connectivity. The combination of a sleek touch interface and programmable shortcut keys allows users to manage lighting, HVAC, and scenes with precision and ease. Whether you’re upgrading an existing home or designing a luxury project from scratch, the KeyPlus fits right in with its elegant appearance and responsive performance.
